Overview

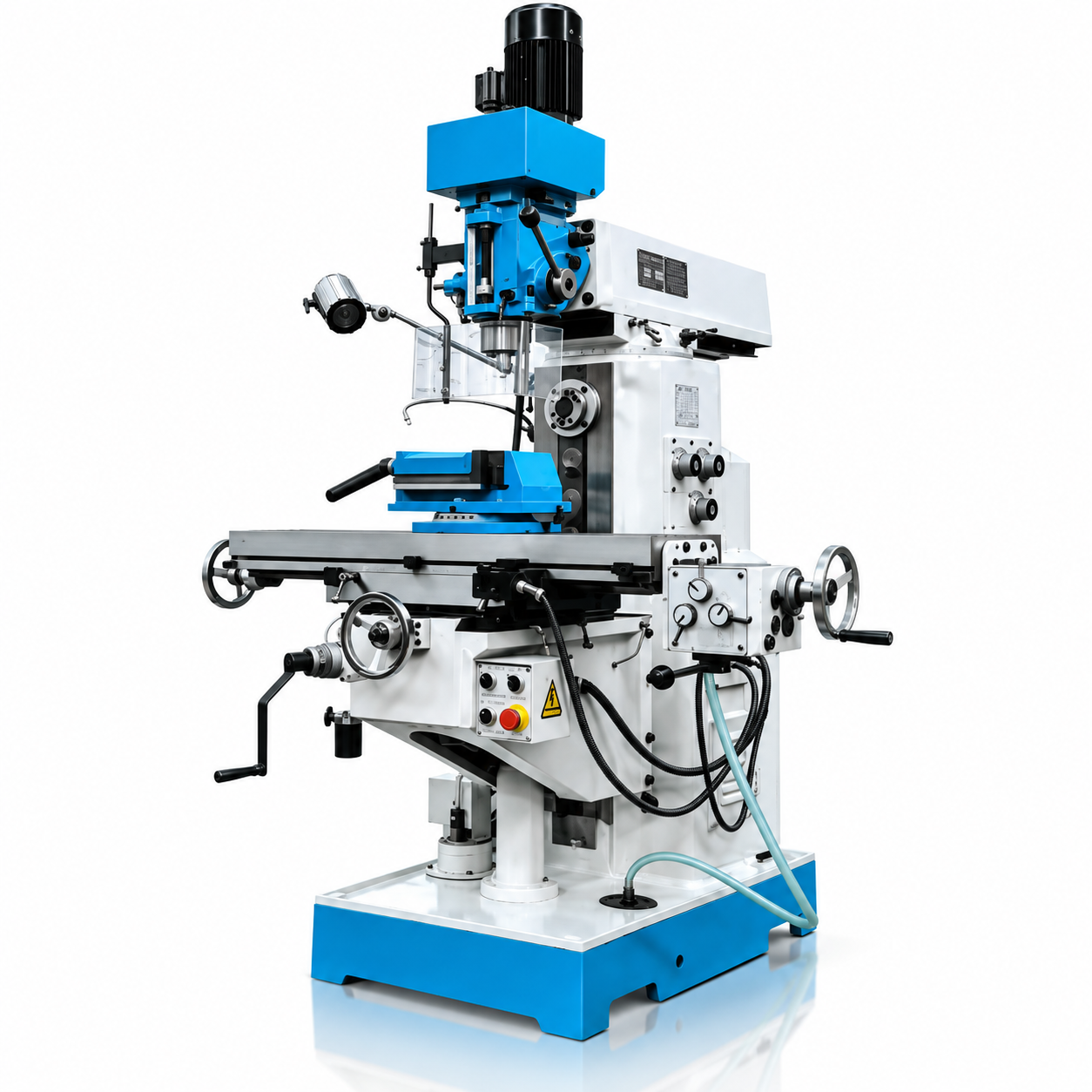

The DML6350Z 3-Axis DRO Vertical Knee Type Milling Machine is a versatile conventional milling machine designed for precision metal cutting, drilling and general industrial machining applications.

Featuring a rigid knee-type structure and vertical spindle configuration, the machine provides excellent stability during milling operations while maintaining flexibility for different machining requirements.

The integrated 3-axis DRO system displays real-time X/Y/Z axis positions, helping operators improve machining accuracy, reduce manual measurement errors and achieve more efficient positioning during complex machining tasks.

With a 1120 × 280 mm worktable, sufficient working travel and a powerful spindle drive system, the DML6350Z is suitable for machining various industrial components including:

• Machine parts
• Fixtures
• Brackets
• Plates
• Shafts
• Housings
• Mold components
• Repair parts

Unlike CNC machining centers, the DML6350Z provides direct manual control, making it highly suitable for workshops requiring flexible machining capability, prototype production, repair work and customized components.

The machine combines traditional milling flexibility with modern DRO positioning technology, providing an economical solution for precision metal fabrication.

Key Features

3-Axis Digital Readout System (DRO)

The DML6350Z is equipped with a 3-axis DRO system for accurate position monitoring of:

• X-axis movement
• Y-axis movement
• Z-axis movement

Benefits include:

• Improved machining accuracy
• Faster positioning
• Reduced operator measurement errors
• Easier hole-location machining
• Better repeatability

The DRO system is especially useful for precision workshop machining and repair applications.

Rigid Knee-Type Machine Structure

The knee-type structure provides strong support for the worktable and workpiece during machining.

The heavy cast-iron construction helps improve:

• Vibration resistance
• Cutting stability
• Machining accuracy
• Machine service life

This structure is suitable for both rough milling and precision finishing.

Large 1120 × 280 mm Worktable

The machine features a large working table measuring approximately:

1120 mm × 280 mm

The spacious table provides enough room for:

• Machine vises
• Rotary tables
• Fixtures
• Clamping devices
• Multiple small workpieces

This improves machining flexibility for different component sizes.

Vertical Milling Spindle

The vertical spindle configuration allows efficient machining operations including:

• Face milling
• End milling
• Slot milling
• Drilling
• Boring
• Reaming
• Tapping

The vertical arrangement provides convenient tool access and easy operation.

Powerful 3.7 kW Spindle Motor

Equipped with a 3.7 kW spindle motor, the DML6350Z provides sufficient cutting power for general industrial metal machining.

The machine can process:

• Carbon steel
• Cast iron
• Aluminum
• Copper alloys
• Other machinable metals

according to tooling and cutting parameters.

Precision Axis Movement

The X/Y/Z axis movement system provides smooth and stable positioning.

Combined with the DRO system, operators can achieve improved dimensional control during:

• Surface milling
• Slot machining
• Hole positioning
• Component repair

Flexible Milling Head Design

The vertical milling head provides convenient adjustment for different machining operations.

Depending on configuration, the milling head may support angular adjustment for:

• Inclined surface machining
• Angled drilling
• Special fixture machining

Wide Machining Capability

The DML6350Z can perform various machining operations:

• Milling
• Drilling
• Boring
• Slotting
• Keyway cutting
• Surface machining
• Chamfering

This makes it suitable as a general-purpose workshop milling machine.

Suitable for Small-Batch Production

The machine is especially suitable for:

• Customized parts
• Prototype machining
• Maintenance production
• Low-volume manufacturing

Operators can quickly adjust machining conditions without CNC programming.

Optional Accessories

The machine can be equipped with:

• Rotary table
• Dividing head
• Machine vise
• Collet chuck
• Coolant system
• Power feed
• Digital measuring accessories
• Clamping kits

These accessories further expand machining capability.

Technical Specifications

Parameter	Specification
Model	DML6350Z
Machine Type	Vertical Knee Type Milling Machine
Control Type	Manual + DRO
DRO System	3-Axis Digital Readout
Worktable Size	1120 × 280 mm
Longitudinal Travel (X Axis)	Approx. 600–800 mm
Cross Travel (Y Axis)	Approx. 250–300 mm
Vertical Travel (Z Axis)	Approx. 400 mm
Spindle Type	Vertical Spindle
Spindle Motor Power	3.7 kW
Spindle Speed	Multi-Speed Configuration
Spindle Taper	According to Configuration
Table T-Slots	Standard T-Slot Design
Machine Structure	Knee Type
Processing Type	Milling / Drilling / Boring
DRO Accuracy	High Precision Position Display
Suitable Materials	Steel, Cast Iron, Aluminum, Copper and Other Metals
Coolant System	Optional
Power Feed	Optional
Rotary Table	Optional
OEM / ODM	Available
Power Supply	Customized

Note: Specifications may vary according to spindle configuration, motor option, DRO system and accessories.

Applications

Mechanical Parts Manufacturing

The DML6350Z is suitable for machining:

• Brackets
• Plates
• Supports
• Covers
• Housings
• Mechanical components

It provides flexible machining capability for various industrial parts.

Tool Room Applications

The machine is widely used in tool rooms for:

• Fixture manufacturing
• Tool modification
• Prototype components
• Custom tooling

The DRO system improves positioning accuracy during precision work.

Maintenance & Repair Workshops

Manual milling machines are especially useful for repair operations because workpieces often vary significantly.

Applications include:

• Equipment repair
• Replacement parts
• Hole repair
• Slot modification
• Surface restoration

Mold & Fixture Manufacturing

Suitable for producing:

• Mold plates
• Fixture bases
• Clamping components
• Positioning blocks
• Tooling parts

Automotive Component Repair

Can be used for machining:

• Mounting brackets
• Engine-related parts
• Transmission components
• Custom repair parts

Agricultural Machinery Parts

Suitable for machining:

• Shafts
• Mounting plates
• Bushings
• Brackets
• Replacement components

General Industrial Fabrication

The machine is suitable for:

• Machine shops
• Manufacturing workshops
• Engineering companies
• Educational workshops
• Small production facilities

FAQ

1. What is the DML6350Z milling machine used for?

The DML6350Z is a vertical knee-type milling machine used for:

• Milling
• Drilling
• Boring
• Slotting
• Surface machining
• Keyway cutting

It is suitable for general metalworking applications.

2. Is the DML6350Z a CNC milling machine?

No.

The DML6350Z is a manual milling machine equipped with a 3-axis DRO system.

The DRO improves positioning accuracy but does not replace CNC automatic programming.

3. What is the advantage of a DRO system?

A DRO system displays the actual position of each axis digitally.

Compared with traditional manual scale reading, it provides:

• Higher positioning accuracy
• Faster operation
• Easier machining adjustment
• Reduced measurement errors

4. What materials can this machine process?

The machine can process:

• Carbon steel
• Alloy steel
• Stainless steel
• Cast iron
• Aluminum
• Copper alloys

The correct cutting tools and parameters should be selected according to material characteristics.

5. What is the worktable size?

The DML6350Z uses approximately:

1120 × 280 mm worktable

which provides sufficient working area for general workshop machining.

6. Can the machine drill holes?

Yes.

With suitable tools, the vertical spindle can perform:

• Drilling
• Reaming
• Boring
• Countersinking
• Tapping

7. Can it machine angled surfaces?

Yes.

Depending on the milling head configuration, angular machining can be performed by adjusting the milling head or using suitable fixtures.

8. Can accessories be added?

Yes.

Optional accessories include:

• Rotary table
• Dividing head
• Power feed
• Coolant system
• Machine vise
• Additional tooling

9. Is it suitable for mass production?

The DML6350Z is mainly suitable for:

• Single-piece machining
• Repair work
• Prototype production
• Small-batch manufacturing

For high-volume repetitive production, CNC machining centers are usually preferred.

10. Can the voltage be customized?

Yes.

The electrical configuration can be adjusted according to customer requirements.

Please provide:

• Voltage
• Frequency
• Phase

before production.

11. Can the machine be customized?

Yes.

Customization options include:

• DRO configuration
• Spindle specification
• Motor power
• Power feed
• Accessories
• Machine color
• Logo
• Electrical configuration

12. How do I choose the right milling machine?

Please provide:

Workpiece Drawing + Material + Size + Required Accuracy + Machining Process + Production Quantity

Our technical team can recommend the suitable milling machine configuration.

Support

Pre-Sales Technical Support

Before ordering, our engineers can evaluate:

• Workpiece requirements
• Material
• Machining process
• Accuracy requirements
• Tooling requirements

and recommend suitable machine specifications.

OEM & ODM Service

Available customization:

• Machine configuration
• DRO system
• Accessories
• Motor specification
• Voltage
• Machine appearance
• Logo customization

Quality Inspection

Before shipment, machines are inspected for:

• Mechanical operation
• Spindle performance
• Axis movement
• DRO function
• Overall machine condition

Inspection videos can be provided.

Export Packaging

Professional export packaging includes:

• Anti-rust protection
• Moisture protection
• Reinforced packaging
• Safe transportation preparation

Remote Technical Support

English technical assistance is available for:

• Installation
• Operation
• Maintenance
• Troubleshooting

Warranty

The machine includes a one-year warranty according to agreed terms.

Lifetime Technical Support

Long-term support is available for:

• Spare parts
• Maintenance
• Operation guidance
• Technical consultation

Need a Reliable Manual Milling Solution?

Send us:

Workpiece Drawing + Material + Dimensions + Machining Requirements

Our team will recommend the appropriate DML6350Z Vertical Knee Type Milling Machine configuration for your workshop.

Contact us for complete specifications and quotation.
