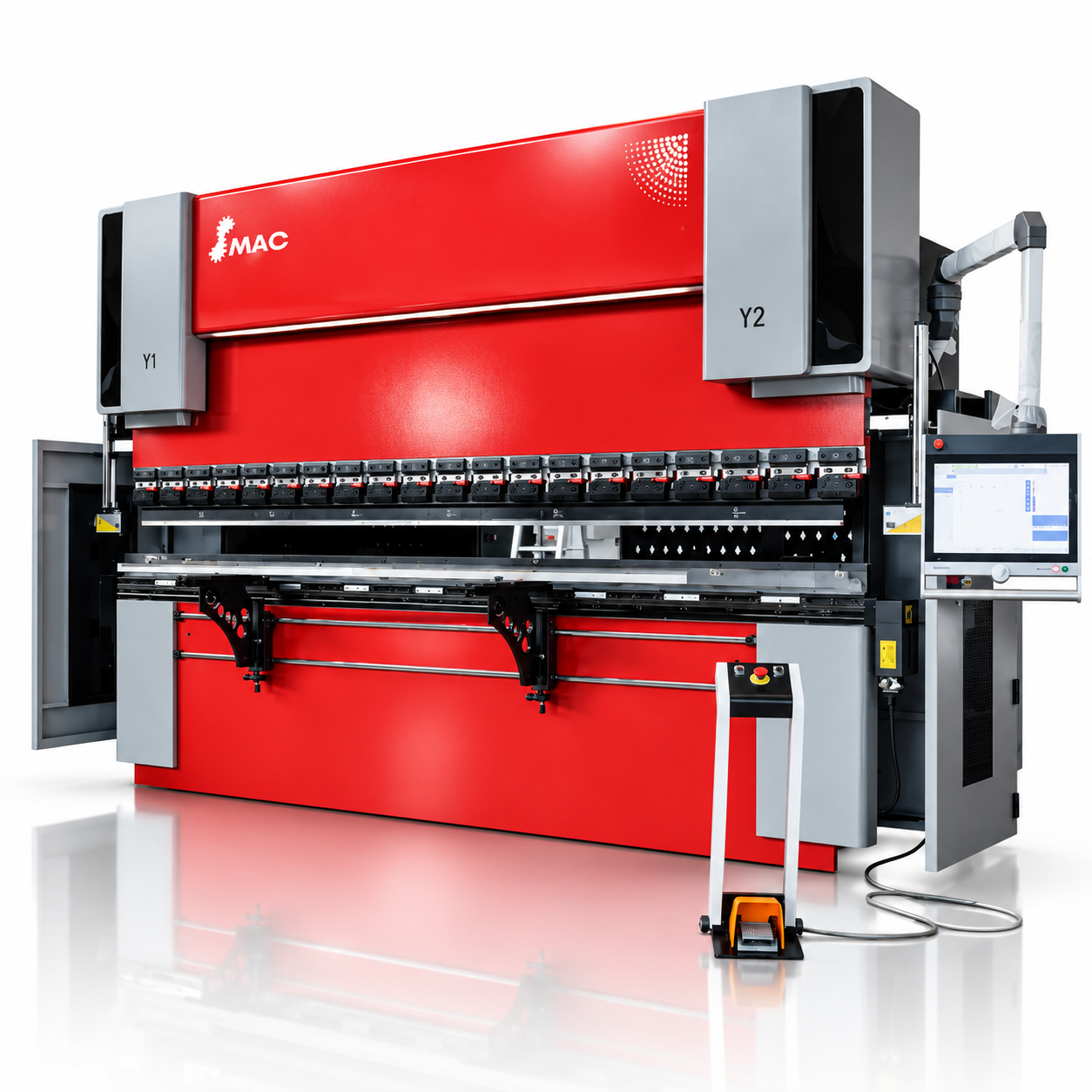

HPC Series Electro-Hydraulic CNC Press Brake Machine
- Supports ESA, Cybelec, and Delem systems with multi-axis programming functions.
- Customizable back gauge, tooling system, safety devices, and machine specifications.
- Rigid welded frame provides excellent durability for long-term operation.
- Optional laser protection and angle measurement systems improve operational safety.
1S0 9001
Certiffed
SVG
Certiffed
CE
Certiffed
Global
Support

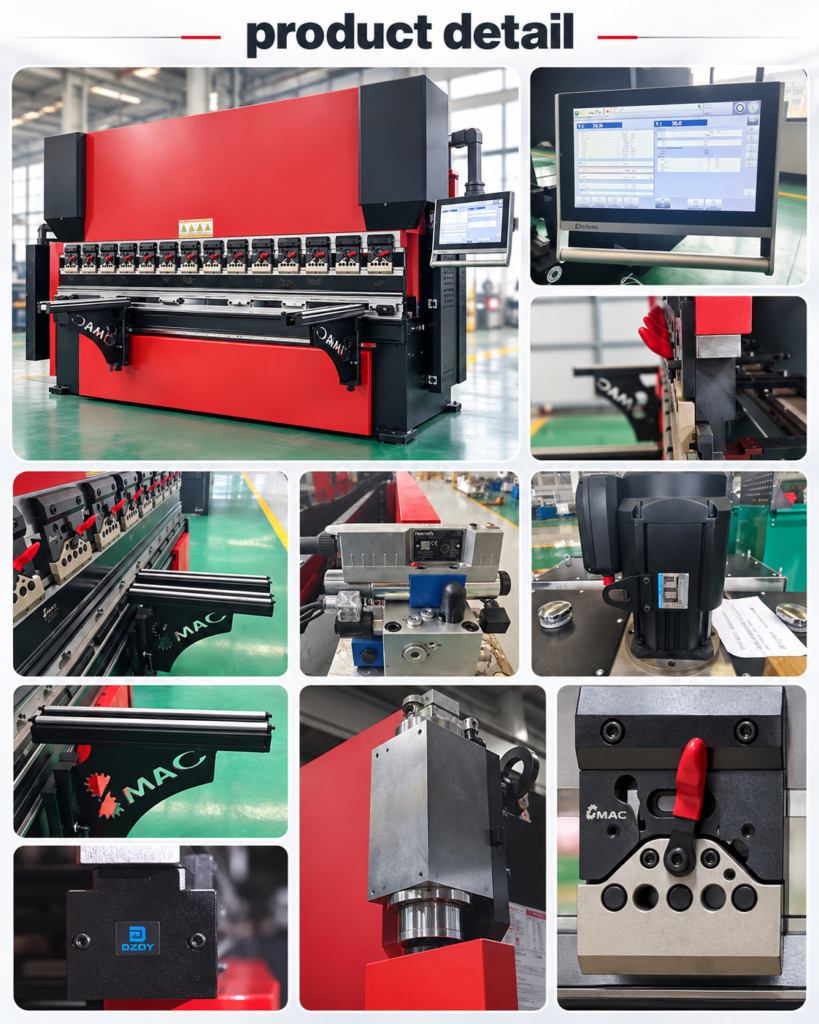

Product Features & Details
High Precision Electro-Hydraulic Synchronized Control System
- Equipped with an advanced electro-hydraulic servo synchronization system to achieve precise control of dual hydraulic cylinders.
- Real-time synchronization technology ensures stable slider movement and accurate positioning during the entire bending process.
- The hydraulic system automatically adjusts cylinder operation to maintain consistent bending accuracy.
- Provides high repeatability and excellent bending performance for precision sheet metal fabrication.
- Reduces bending errors caused by uneven hydraulic pressure and improves overall production efficiency.
- Suitable for continuous industrial production requiring high accuracy and stable performance.
CNC Automatic Crowning Compensation System
- The CNC system automatically calculates and compensates bending deformation caused by working pressure.
- Ensures consistent bending angles across the entire working length.
- Improves bending accuracy when processing long workpieces and different material thicknesses.
- Reduces manual adjustment requirements and improves production efficiency.
- Provides stable bending results for complex and precision metal components.
- Ensures uniform product quality during mass production.
Laser Angle Measurement System (Optional)
- Equipped with optional laser angle detection technology for real-time bending angle measurement.
- Automatically monitors bending results and improves product consistency.
- Reduces manual inspection procedures and improves production efficiency.
- Provides higher accuracy for precision sheet metal components.
- Suitable for applications with strict bending tolerance requirements.
Sheet Metal Support System (Optional)
Front Sheet Follower Support
- Designed for large-size and heavy sheet metal bending applications.
- Provides additional support during bending operations.
- Reduces material deformation caused by workpiece weight.
- Improves operator convenience and reduces labor intensity.
- Ensures stable bending performance for large metal plates.
Floor-Mounted Follower Support
- Provides stable support for oversized and heavy workpieces.
- Helps maintain accurate positioning during bending.
- Improves bending consistency for long metal sheets.
- Suitable for large-scale industrial fabrication.
Technical Parameters
| Model | Nominal Force | Working Length | Throat Depth | Slider Stroke | Motor Power |
|---|---|---|---|---|---|
| HPC-501600 | 500KN | 1600mm | 320mm | 100mm | 5.5kW |
| HPC-702000 | 700KN | 2000mm | 320mm | 100mm | 7.5kW |
| HPC-1002500 | 1000KN | 2500mm | 400mm | 150mm | 7.5kW |
| HPC-1303200 | 1300KN | 3200mm | 400mm | 150mm | 11kW |
| HPC-1704000 | 1700KN | 4000mm | 420mm | 200mm | 15kW |
| HPC-2204000 | 2200KN | 4000mm | 420mm | 200mm | 18.5kW |
| HPC-3206000 | 3200KN | 6000mm | 520mm | 250mm | 30kW |
| HPC-5006000 | 5000KN | 6000mm | 600mm | 300mm | 37kW |
| HPC-8006000 | 8000KN | 6000mm | 600mm | 400mm | 45kW |
Main Specifications
| Item | Description |
|---|---|
| Product Type | Electro-Hydraulic CNC Press Brake |
| Machine Structure | Welded Steel Frame |
| Control System | ESA / Cybelec / Delem CNC Optional |
| Hydraulic System | Electro-Hydraulic Servo Synchronization |

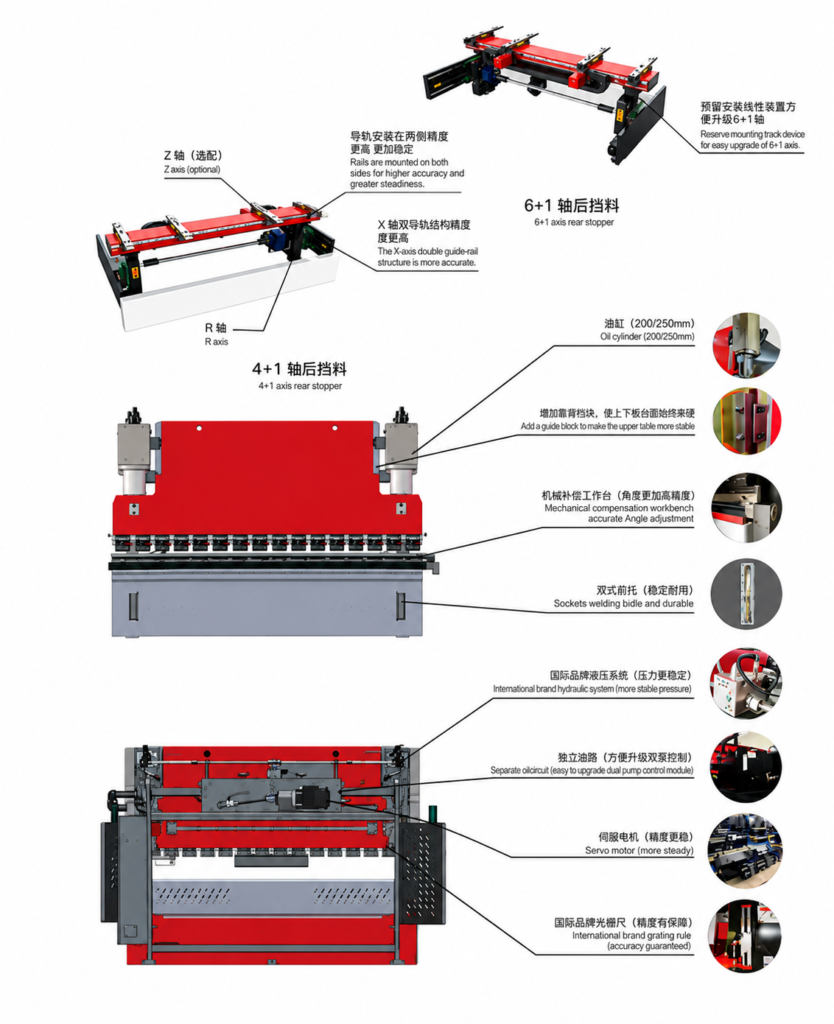

| Back Gauge System | Multi-Axis CNC Back Gauge |
| Crowning System | Automatic CNC Compensation |
| Tool Clamping | Manual / Hydraulic / Pneumatic Optional |
| Safety System | Laser Protection Optional |
| Material Application | Carbon Steel, Stainless Steel, Aluminum |
Customization Options
Machine Configuration Customization
We provide customized solutions according to different production requirements.
Available customization:
- Customized bending length
- Customized bending force
- Customized CNC controller
- Customized back gauge axis configuration
- Customized tooling system
- Customized safety protection system
- Customized machine appearance
OEM/ODM Manufacturing Support
We provide professional OEM/ODM services:
- Customized machine design
- Customized functions and configurations
- Private label support
- Export packaging customization
- Technical documentation support
International Export Service
- CE certification support
- Professional export packaging
- English operation interface
- Remote installation guidance
- Technical training support
- One-year warranty
- Lifetime technical support
- Spare parts supply
FAQ
Q1: What materials can this press brake process?
The machine can process various metal materials, including carbon steel, stainless steel, aluminum, and other commonly used industrial sheet metals.
Q2: What CNC systems are available?
The HPC Series supports international CNC systems including ESA, Cybelec, and Delem according to customer requirements.
Q3: Can the machine be customized?
Yes. We provide customized solutions including machine size, bending force, CNC system, back gauge configuration, tooling system, and safety devices.
Q4: How many axes can the back gauge support?
The CNC back gauge system can be customized according to production requirements, with optional configurations supporting up to 6 axes.
