Overview

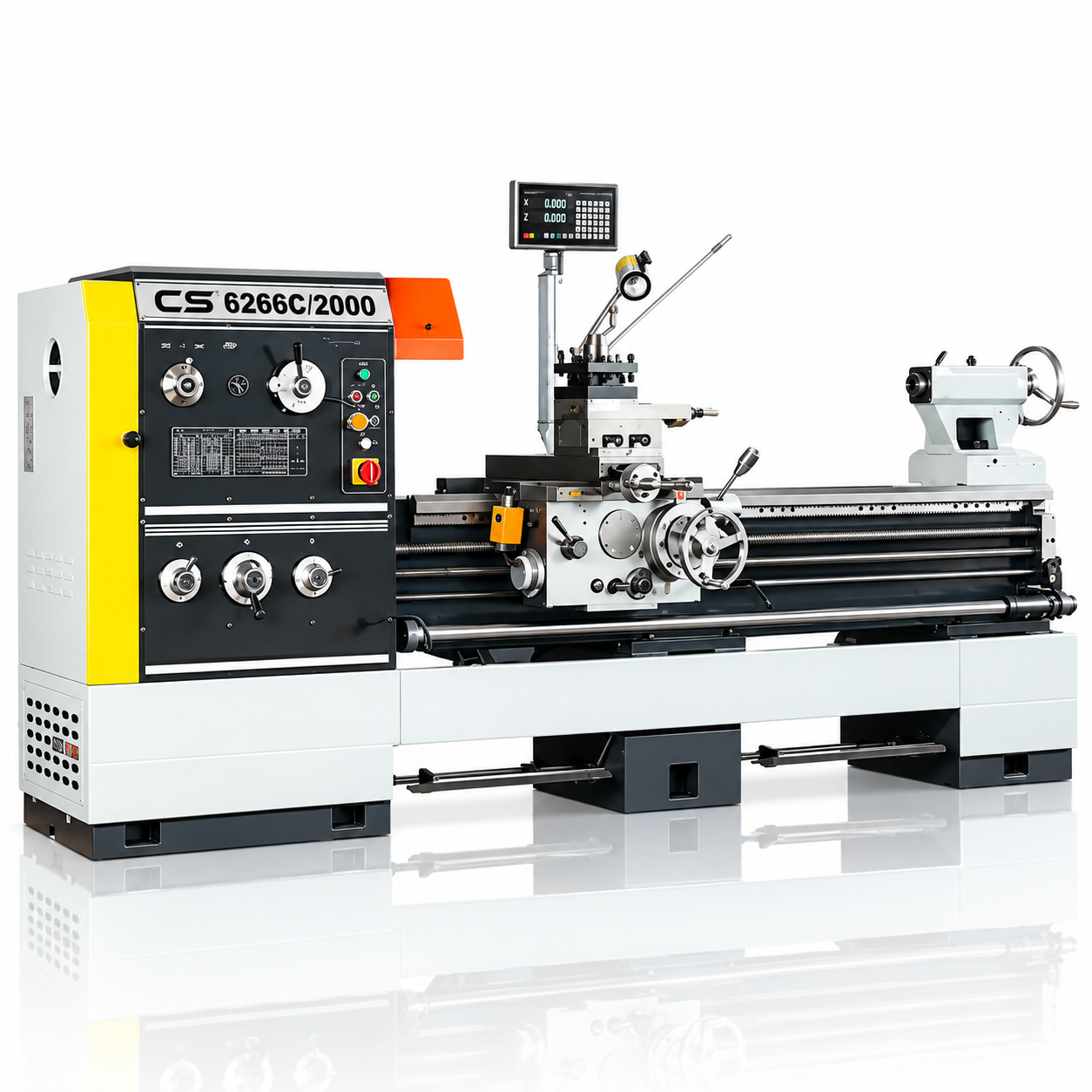

The LB6266C/2000 Horizontal Gap Bed Manual Lathe Machine is designed for heavy-duty and precision metal turning applications where machining flexibility, rigidity and reliable manual operation are required.

With a maximum swing over bed of 660 mm, a large 105 mm spindle bore and a workpiece capacity of up to 2000 mm in length, the machine is capable of handling both large-diameter components and long shafts. The removable gap-bed design further increases machining capacity near the headstock, making it suitable for larger flanges, discs and irregularly shaped components.

The machine can perform a wide range of conventional turning operations including internal and external turning, taper turning, end facing, threading, drilling, boring and grooving. Metric, inch, module and diametral-pitch threading capabilities provide flexibility for customers serving different markets and machining standards.

Its robust cast-iron structure, hardened guideways and high-rigidity spindle system help provide stable cutting performance during both heavy material removal and precision finishing.

The LB6266C/2000 is suitable for general engineering workshops, industrial machinery manufacturers, repair facilities and metal component producers requiring a dependable manual horizontal lathe for medium and large workpieces.

Key Features

Heavy-Duty Horizontal Gap Bed Structure

The rigid horizontal machine bed provides excellent stability during heavy cutting operations.A removable gap section near the spindle allows larger-diameter workpieces to be machined without requiring a substantially larger machine.This makes the lathe particularly suitable for:

• Large flanges
• Discs
• Flywheels
• Large-diameter sleeves
• Irregular rotational components

660 mm Swing Over Bed

The machine provides a maximum swing over bed of approximately 660 mm, offering sufficient capacity for medium and large industrial workpieces.The maximum swing over the carriage is approximately 420 mm, providing flexible machining capacity for general turning applications.

Large 105 mm Spindle Bore

The 105 mm through-spindle bore allows larger bars, tubes and shafts to pass through the headstock.This significantly expands the range of workpieces that can be processed compared with smaller conventional lathes.

2000 mm Workpiece Capacity

The LB6266C/2000 configuration provides a nominal machining length of 2000 mm, making it suitable for long shafts, rollers and other elongated components.Other bed-length configurations may also be available according to production requirements.

Wide Range of Turning Operations

The machine can perform multiple conventional machining processes, including:

• External turning
• Internal turning
• Facing
• Taper turning
• Thread cutting
• Grooving
• Drilling
• Boring

This allows one machine to handle a wide variety of general workshop machining requirements.

Multiple Thread Cutting Capabilities

The gearbox supports different thread standards including:

• Metric threads
• Inch threads
• Module threads
• Diametral pitch threads

This makes the machine suitable for international manufacturing and repair applications where different thread standards may be required.

Rigid Spindle System

The spindle system is designed for good rigidity and machining stability.A large spindle bore combined with a robust spindle structure allows the machine to accommodate larger workpieces while maintaining smooth rotation during machining.

Hardened and Ground Bed Ways

The machine bed and guideways are designed to provide good wear resistance and long-term machining accuracy.Hardened and precision-ground guideways help maintain stable carriage movement during repeated industrial operation.

Flexible Workholding

Different workholding accessories can be configured depending on the application, including:

• 3-jaw chuck
• 4-jaw chuck
• Faceplate
• Steady rest
• Follow rest

This allows both regular and irregular workpieces to be securely clamped for machining.

Manual Control with Easy Operation

As a conventional manual lathe, the machine provides operators with direct control over machining parameters and movements.

It is particularly suitable for:

• Small-batch production
• Repair work
• Tool rooms
• Custom machining
• Maintenance workshops
• Training workshops

where flexible manual machining is often more practical than fully automated CNC production.

Technical Specifications

Parameter	Specification
Model	LB6266C/2000
Machine Type	Manual Lathe / Engine Lathe
Machine Structure	Horizontal Gap Bed
Control Type	Manual / Conventional
Max. Swing Over Bed	660 mm
Max. Swing Over Carriage	420 mm
Max. Swing in Gap	Approx. 870 mm
Effective Length in Gap	Approx. 240 mm
Max. Workpiece Length	2000 mm
Spindle Bore	105 mm
Spindle Nose	ISO 702/II No.8 Camlock Type
Spindle Speed	Multiple-speed mechanical gearbox
Main Motor Power	Approx. 7.5 kW
Tailstock Quill Diameter	Approx. 75 mm
Tailstock Quill Travel	Approx. 150 mm
Tailstock Taper	MT5
Tool Shank Size	Approx. 25 × 25 mm
Thread Types	Metric / Inch / Module / D.P.
Chuck	3-Jaw / 4-Jaw Options
Power Supply	Customized according to destination
Suitable Materials	Steel, Cast Iron, Aluminum and Other Metals

The commonly published CS6266C specification lists 660 mm swing over bed, 420 mm swing over slide, 870 mm swing in the gap, 105 mm spindle bore, 7.5 kW main motor and 1000/1500/2000/3000 mm workpiece-length options.

Note: Technical specifications and accessories may vary according to the final machine configuration. Please confirm the required machining diameter, workpiece length, material and power supply before ordering.

Applications

The LB6266C/2000 Horizontal Gap Bed Manual Lathe can be used across a wide range of industrial metalworking applications.

Shaft Machining

Suitable for turning:

• Drive shafts
• Motor shafts
• Transmission shafts
• Pump shafts
• Machine shafts
• Long cylindrical workpieces

The 2000 mm bed length provides additional flexibility when machining longer components.

Flange and Disc Machining

The gap-bed construction increases the available swing near the headstock, making the machine particularly suitable for larger:

• Flanges
• Discs
• Pulleys
• Flywheels
• Large circular components

General Machinery Manufacturing

Suitable for producing or repairing:

• Bushings
• Sleeves
• Rollers
• Couplings
• Pins
• Spacers
• Threaded components
• Machine replacement parts

Maintenance and Repair Workshops

Manual operation makes the machine particularly useful for repair shops where workpiece size, shape and machining requirements frequently change.Operators can quickly adapt machining procedures without programming a CNC system.

Automotive and Transportation Components

Suitable for turning various shafts, sleeves, hubs, couplings and other rotational metal components used in automotive and transportation equipment.

Agricultural Machinery

Can be used for manufacturing and repairing:

• Equipment shafts
• Bushings
• Axles
• Rollers
• Couplings
• Replacement machine components

Pump and Valve Manufacturing

Suitable for machining components such as:

• Pump shafts
• Valve stems
• Sleeves
• Flanges
• Bushings
• Threaded components

Industrial Equipment Manufacturing

The heavy-duty structure makes the lathe suitable for general industrial machinery, mining equipment, construction machinery and equipment maintenance applications.

FAQ

1. Is the LB6266C/2000 a CNC lathe?

No.The LB6266C/2000 is a manual horizontal gap bed lathe, also commonly referred to as a conventional lathe, engine lathe or manual metal lathe.It is suitable for customers who require flexible manual machining rather than CNC-programmed automatic production.

2. What is the maximum workpiece diameter?

The maximum swing over the bed is approximately 660 mm, while the maximum swing over the carriage is approximately 420 mm.The removable gap section provides additional capacity for larger-diameter workpieces near the headstock.

3. What is the maximum workpiece length?

This model is configured for workpieces up to approximately 2000 mm in length.Other machine-bed lengths may be available depending on production requirements.

4. What materials can the machine process?

The lathe can process a wide range of metal materials including:

• Carbon steel
• Alloy steel
• Stainless steel
• Cast iron
• Aluminum
• Copper
• Other non-ferrous metals

Actual cutting parameters should be selected according to workpiece material, tooling and required machining accuracy.

5. What machining operations can it perform?

The machine can perform:

• External turning
• Internal turning
• Facing
• Taper turning
• Threading
• Grooving
• Drilling
• Boring

This makes it suitable for both manufacturing and repair applications.

6. What thread types can the machine cut?

The gearbox can support multiple thread standards, including Metric, Inch, Module and Diametral Pitch threads.

7. Why is the 105 mm spindle bore important?

A larger spindle bore allows larger-diameter bars, tubes and shafts to pass directly through the spindle.This improves machining flexibility and makes the machine particularly useful for shaft and bar-stock processing.

8. What is the advantage of a gap bed lathe?

The removable gap section provides additional clearance near the spindle.When the gap section is removed, larger-diameter components such as flanges, discs and flywheels can be machined.For normal turning operations, the machine continues to function as a conventional horizontal lathe.

9. Can the machine voltage be customized?

Yes.Electrical configurations can be adapted to different destination markets, including different voltage and frequency requirements.Common industry configurations include 220 V, 380 V and 420 V with 50 Hz or 60 Hz supply options.

10. What accessories are available?

Depending on the selected configuration, accessories can include:

• 3-jaw chuck
• 4-jaw chuck
• Faceplate
• Steady rest
• Follow rest
• Quick-change tool post
• Digital readout
• Chuck guard
• Leadscrew guard
• Coolant system
• Work light

Please confirm required accessories when requesting a quotation.

11. How do I know whether this model is suitable for my workpiece?

Please send us:

Workpiece Drawing + Material + Maximum Diameter + Maximum Length + Required Accuracy + Machining Process

Our technical team can evaluate the application and recommend an appropriate machine configuration.

Support

We provide technical and service support throughout the machine purchasing and operating process.

Pre-Sales Technical Consultation

Our technical team can evaluate your workpiece specifications and machining requirements before purchase.

You can provide:

• Workpiece drawings
• Maximum diameter
• Maximum length
• Material
• Required machining accuracy
• Processing method
• Production quantity

We can then recommend a suitable machine configuration.

OEM & ODM Service

Machine appearance and functional configurations can be customized according to customer requirements.Private labeling and complete machine customization are available for distributors and industrial customers.

Machine Inspection Before Shipment

Machines undergo quality inspection before shipment.Machine inspection and operation videos can be provided so customers can check equipment condition and basic operation before delivery.

Professional Export Packaging

Machines are prepared with professional export packaging designed for international transportation.Packaging methods are selected according to machine size, weight and transportation requirements.

International Logistics Support

We can assist customers with international logistics coordination and export documentation.

Remote Technical Guidance

English-language technical guidance and remote support can be provided for machine installation, commissioning, operation and troubleshooting.

English Documentation

English operating instructions and technical information can be supplied for international customers.

Warranty

The machine is supplied with a one-year warranty, subject to the agreed order terms.Long-term technical support is available after the warranty period.

Spare Parts Support

Replacement parts and maintenance support can be provided throughout the machine’s service life.

Need Help Selecting the Right Manual Lathe?

Send us your:

Workpiece Drawing + Material + Maximum Diameter + Maximum Length + Required Accuracy + Voltage

We will recommend the appropriate machine configuration based on your machining requirements.

Contact us for full specifications, optional accessories and quotation.
